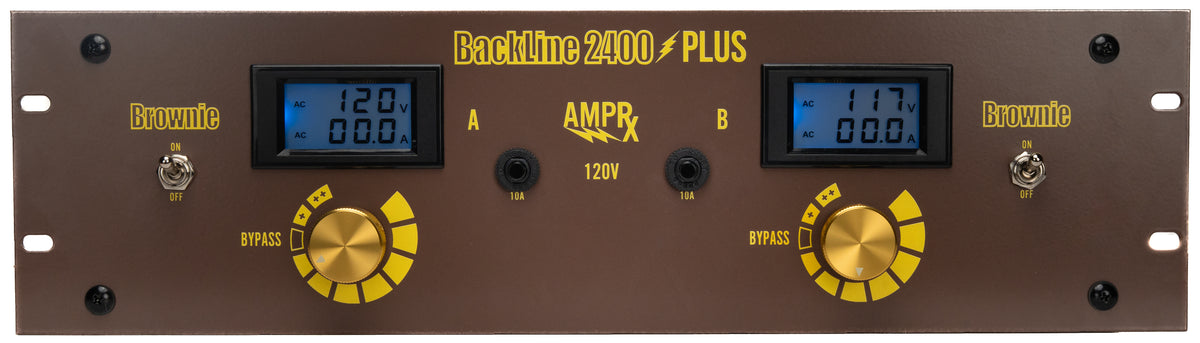

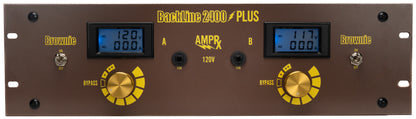

BackLine 2400 Plus

The Backline 2400 Plus builds upon the flexibility of the Backline 2400 by incorporating Brownie voltage adjustment technology, adding both voltage reduction and voltage increase capabilities to a dual-channel rack-mounted platform.

Designed for touring professionals, studios, and complex amplifier systems, the Backline 2400 Plus features two independently adjustable channels with four outputs per side. This allows users to supply different amplifiers with different voltages while maintaining complete control over incoming power conditions.

Built-in voltage and current monitoring on both channels provide real-time visibility into exactly what your gear is receiving, while independent controls allow each side to be adjusted separately to accommodate vintage and modern amplifiers in the same rig.

With eight total outlets, dual-channel operation, and up to 2400 watts of total power handling, the Backline 2400 Plus is an ideal solution for players and technicians who need maximum flexibility and consistent voltage across multiple amplifiers.

Specs:

Power Handling: 20 Amps at 120VAC, 50/60 Hz, up to 2400 Watts
Inputs: 120VAC, 50/60 Hz; Standard 16A IEC cable

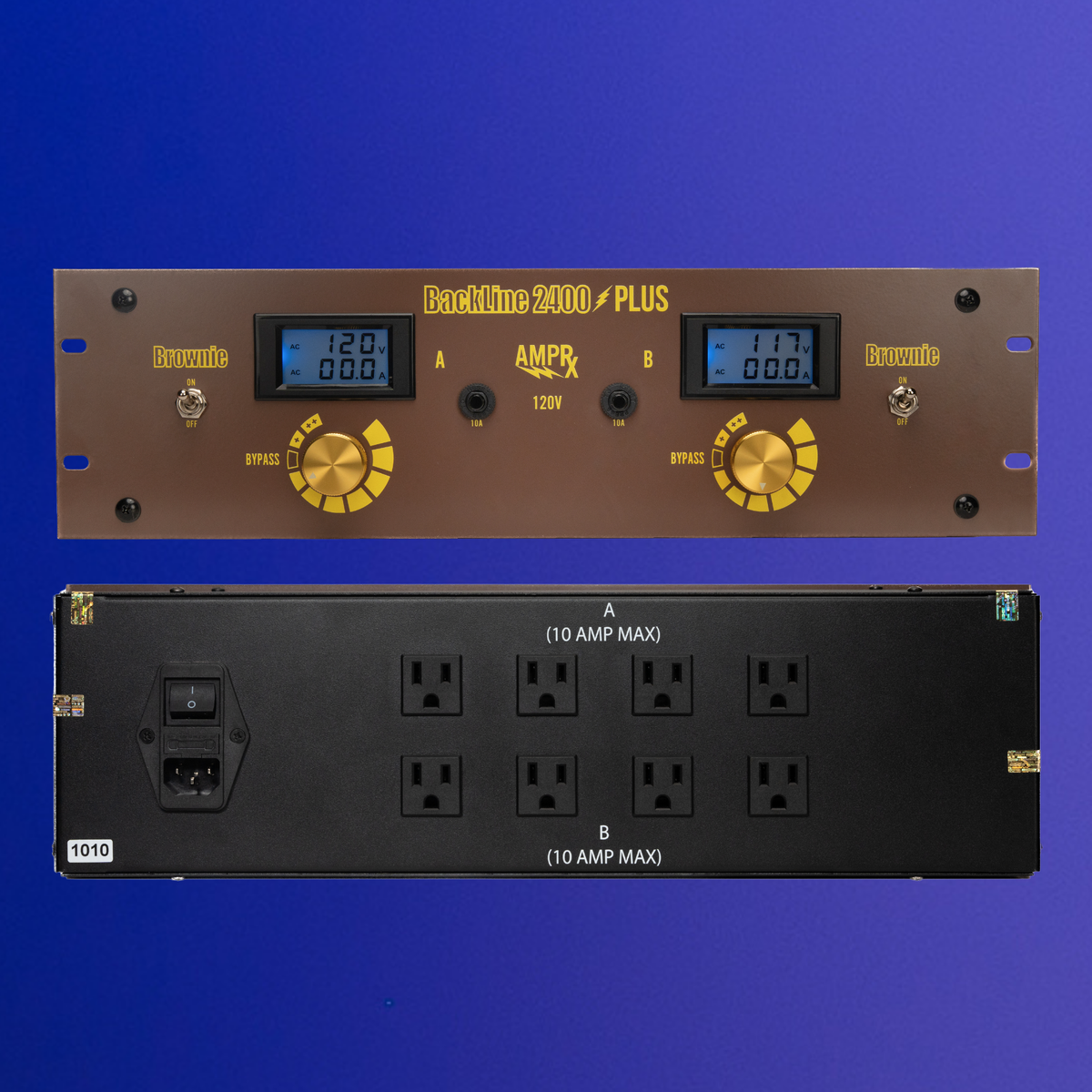

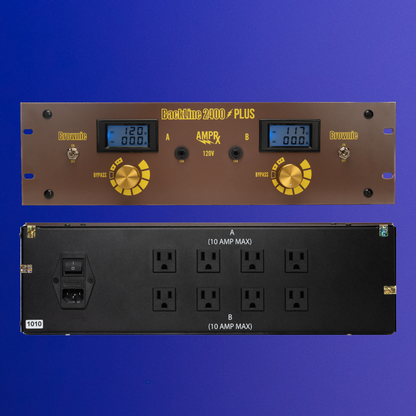

Outputs: Eight (8) AC Grounded Outlets [Four (4) per channel]; Adjustable Voltage Control: Decreasing Increments: -1V (-7V Max Reduction); Increasing Increments: +3V, +5V
Power Source: 120V
Three Fuses: 20A (in IEC), 2x 10A (one per channel)
Accessories: 16A IEC Cable, Extra 20A Fuse (in unit)
